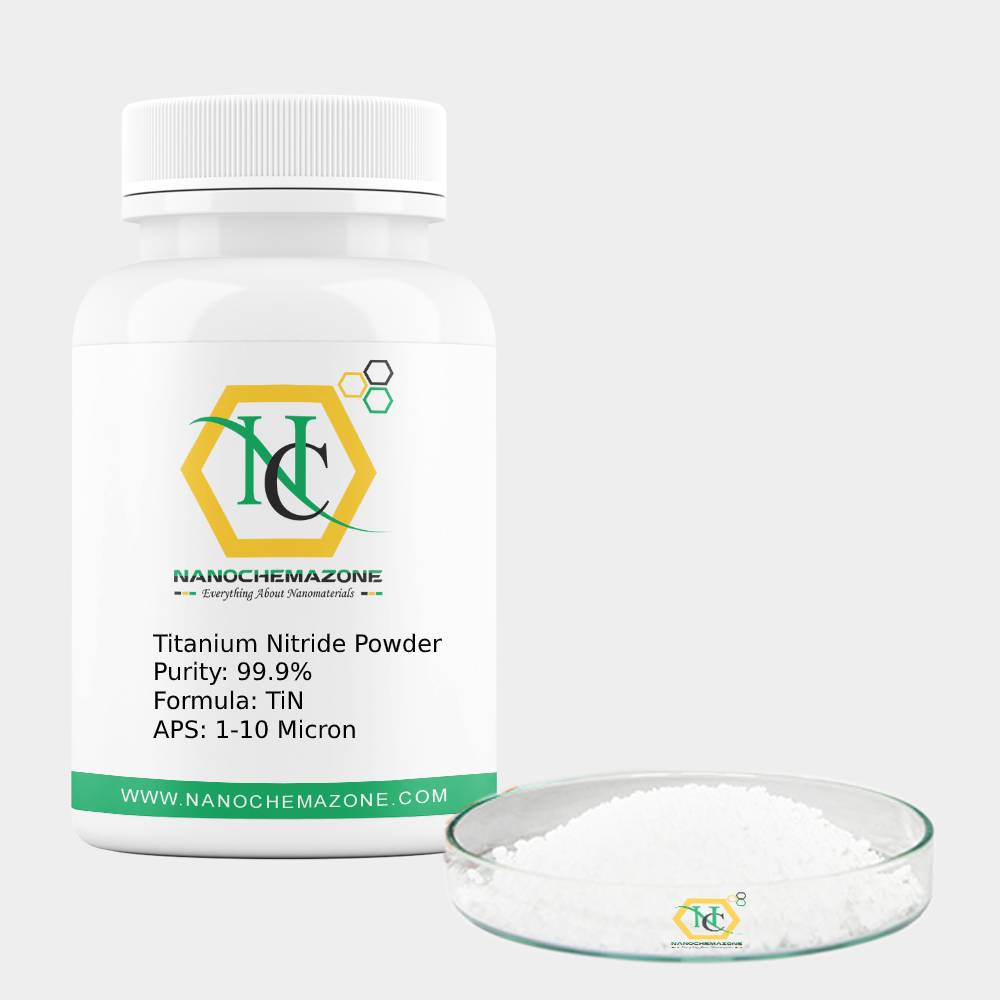

Titanium Nitride Powder
Product Name: Titanium Nitride Powder
Product |
Titanium Nitride Powder |
Colour |
White |
Purity |
≥ 99.9% |
Particle size |
1-10 µM (customizable) |
Ingredient/MF |
TiN |
Product Code |
NCZ-CN-145/20 |
CAS Number |
7440-31-5 |
Depending on the substrate material and surface finish, TiN will have a coefficient of friction ranging from 0.4 to 0.9 against another TiN surface (non-lubricated).
Titanium nitride is also produced intentionally within some steels by the judicious addition of titanium to the alloy. TiN forms at very high temperatures because of its very low enthalpy of formation, and even nucleates directly from the melt in secondary steelmaking.
It forms discrete, micrometre-sized cubic particles at grain boundaries and triple points, and prevents grain growth by Ostwald ripening up to very high homologous temperatures, Titanium nitride has the lowest solubility product of any metal nitride or carbide in austenite, a useful attribute in micro-alloyed steel formulas.
Titanium Nitride Powder Application:
- Used as diamond tools, metal-ceramic, high-temperature alloy additives.
2 Titanium nitrides is an extremely hard ceramic material, often used as a coating on titanium alloys, steel, carbide, and aluminum components to improve the substrate’s surface properties.
- Applied as a thin coating, TiN is used to harden and protect cutting and sliding surfaces, for decorative purposes (due to its golden appearance), and as a non-toxic exterior for medical implants. In most applications a coating of less than 5 micrometres (0.00020 in) is applied.
- Though less visible, thin films of TiN are also used in microelectronics.
- Due to their high biostability, TiN layers may also be used as electrodes in bioelectronic applications like in intelligent implants or in-vivo biosensors that have to withstand the severe corrosion caused by body fluids.
- TiN electrodes have already been applied in the subretinal prosthesis project as well as in biomedical microelectromechanical systems.
Please email us for the customization.
Email: contact@nanochemazone.com
Please contact us for customization and price inquiry
Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
