Product |
|
CAS No. |
1304-76-3 |
Appearance |
Yellow Powder |
Purity |
99% |
APS |
1-5 µM (Can be customized) |
Ingredient |
Bi2O3 |
Product Code |
NCZ-NSC511/20 |
Molecular Weight |
465.96 g/mol |
Theoretical Density |
8.9 g/cm³ |
Melting Point |
817ºC (1,502.6°F) |
Refractive Index |
2.45 at 550nm (sputter), 2.7 at 600nm (e-beam) |
Evaporation Source |
Bi, e-beam |

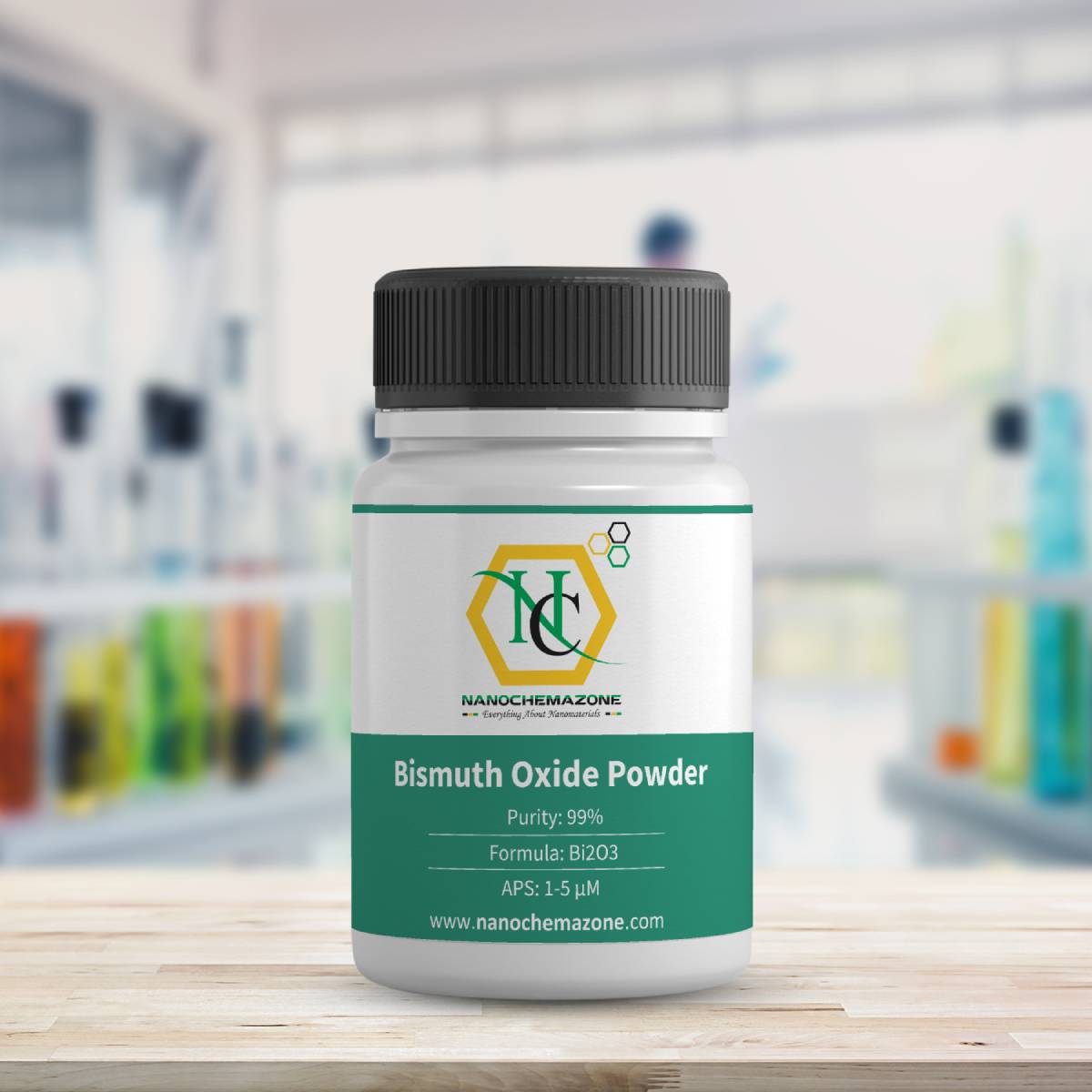

Bismuth Oxide Description
Nanochemazone specializes in producing spray dry and non-spray dry high purity Bismuth OxidePowder with the smallest possible average grain sizes for use in preparation of pressed and bonded sputtering targets and in Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) processes including Thermal and Electron Beam (E-Beam) Evaporation, Low Temperature Organic Evaporation, Atomic Layer Deposition (ALD), Metallic-Organic and Chemical Vapor Deposition (MOCVD).
Powders are also useful in any application where high surface areas are desired such as water treatment and in fuel cell and solar applications. Nanoparticles also produce very high surface areas. Our standard powder particle sizes average in the range of – 325 mesh, – 100 mesh, 10-50 microns and submicron (< 1 micron) and our spray dried powder with binder provides an extrem High Purity Bismuth Oxide Powderely narrow particle size distribution (PSD) for use in thermal and plasma spray guns and other coating applications.
We can also provide many materials in the nanoscale range. Materials are produced using crystallization, solid state and other ultra high purification processes such as sublimation. Nanochemazone specializes in producing custom compositions for commercial and research applications and for new proprietary technologies.
Nanochemazone also casts any of the rare earth metals and most other advanced materials into rod, bar, or plate form, as well as other machined shapes and through otherprocesses such as nanoparticles and in the form of solutions and organometallics. We also produce Bismuth Oxide as pellets, pieces, tablets, and sputtering target. Oxide compounds are not conductive to electricity. However, certain perovskite structured oxides are electronically conductive finding application in the cathode of solid oxide fuel cells and oxygen generation systems. Other shapes are available by request.
Bismuth Oxide Related Information
Storage Conditions:
Airtight sealed, avoid light and keep dry at room temperature.
Please contact us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and also accept customization in various parameters.
Market Focus: Lithium/Ion Batteries, High Purity Thin Film Coating, High Purity Fiber Optics, High Purity Crystal Growth
